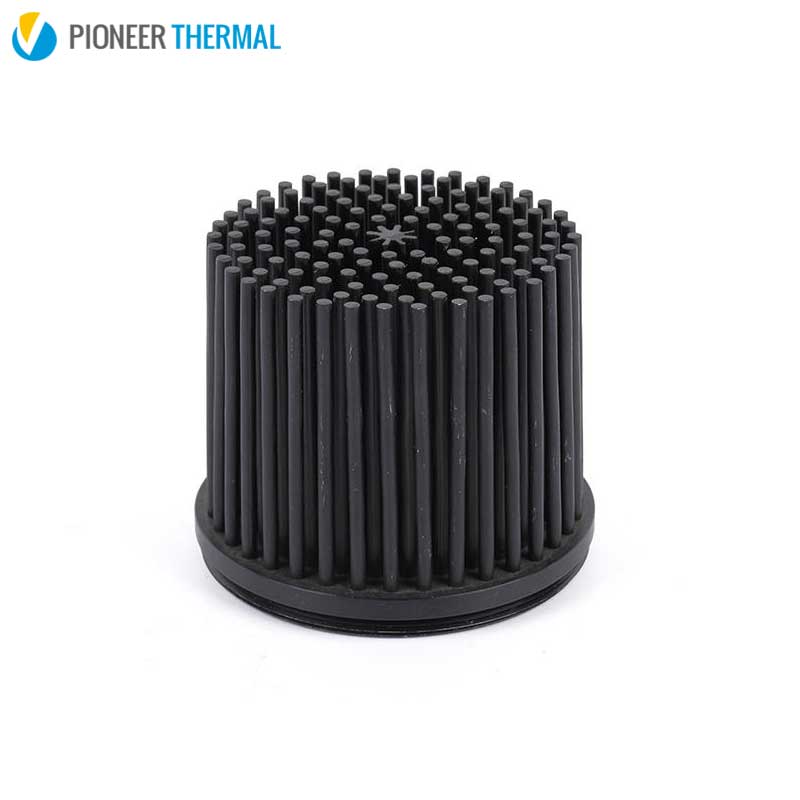

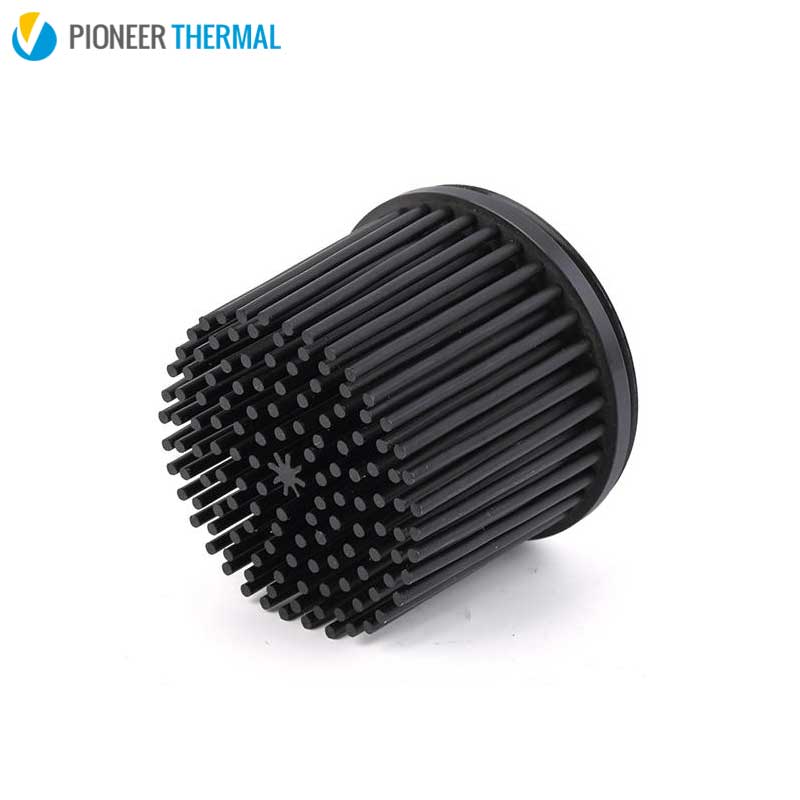

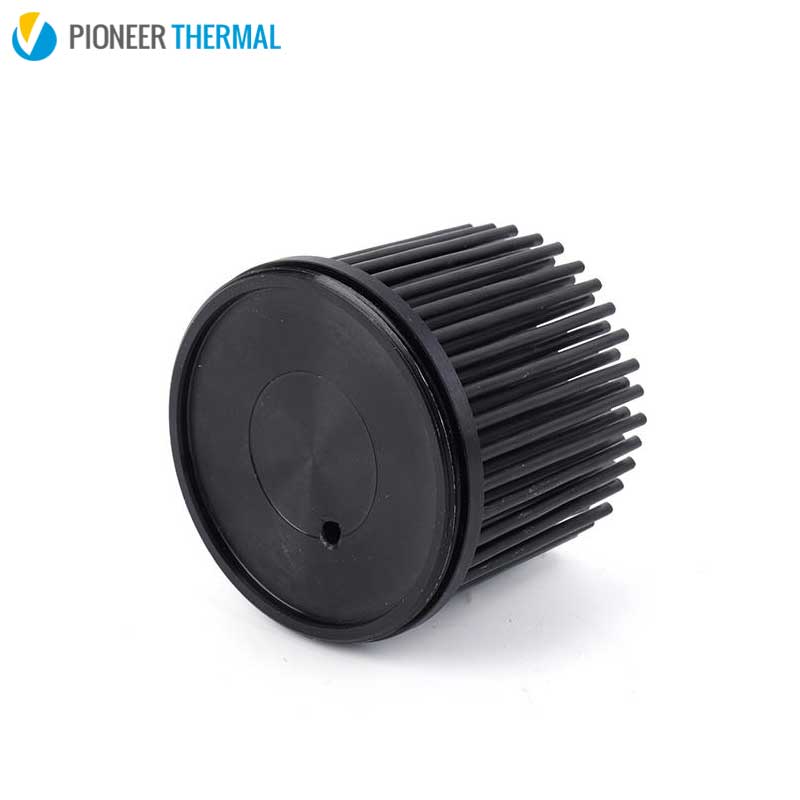

    140mm Pin Heatsink Aluminum

    Use range：
    Cold forging is a manufacturing process in which the aluminum or copper heat sink is formed by using localized compressed forces. cold forging heat sink,heat sink manufacturer.

    INQUIRY

    Product Introduction


    The common material that used for pin fin heat sink is AL1070 and CU1100, yes, pin fin heat sink can be made not only of aluminium but also of copper. Pioneer Thermal also developed pin fin heat sink to be made with AL6063 for some certain structure and market.

    Pin fin heat sink normally used for LED, camera etc., compare to extrusion heat sink, pin fin heat sink thermal performance is better and heat dissipation area is bigger. Pin fin heat sink surface treatment can be anodize, e-coating, painting, nickel plating, anti-oxidation.

    140mm Pin Heatsink Aluminum

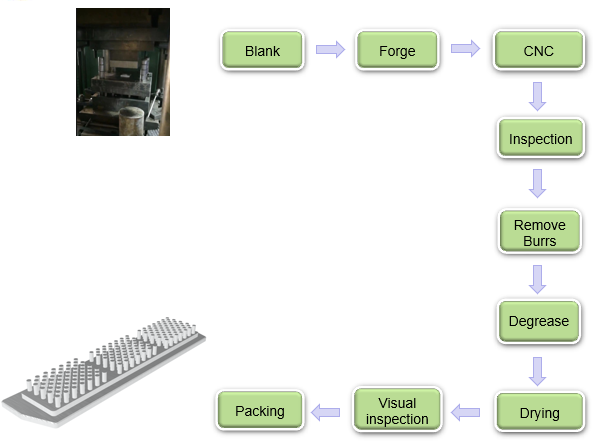

    Pin Fin Heat Sink Process:


    Pin fin heat sink process


    Available heat sink process of Pioneer Thermal:


    Main Process Extrusion Bonded Fins Skived Fins Snapped Fins Folded Fins Heat Pipes
    Cold Forging Die Casting FSW cold plate Gun drill cold plate Vacuum brazing cold plate Vapor chamber
    Finishing Processes CNC machining Drilling Tapping Stamping Anodizing Screen printing
    Powder coating Laser etching Polishing Electrophoresis E-coating
    Finishing Value Added Embedded fans Thermal Greases Screws Springs Clips Embedded heat pipes
    Phase change materials Back plates Gap filler pads PEMs Standoffs Dielectric pads
    Compounds

    Pioneer Thermal Quality Assurance:

    Pioneer Thermal will do the quality control from incoming material to heat sink shipped, if customer find any defect parts when received the goods, we will send replacement or credit note.


    Inspection tool of Pioneer Thermal:

    Heat sink dimension
    CMM Projector
    Heat sink performance
    Salt Spray Tester Pressure Tester Clip Force Tester Drop Tester Helium Leakage Tester
    Heat sink reliability
    Wind Tunnel On Line Thermal Tester HP Qmax Tester HP Delta T Tester Thermal Shock High Temperature Aging Chamber

    Quality Inspection Tool of Pioneer Thermal

    Quality Inspection Tool of Pioneer Thermal

    Quality Inspection Tool of Pioneer Thermal


    Pioneer Thermal R&D:

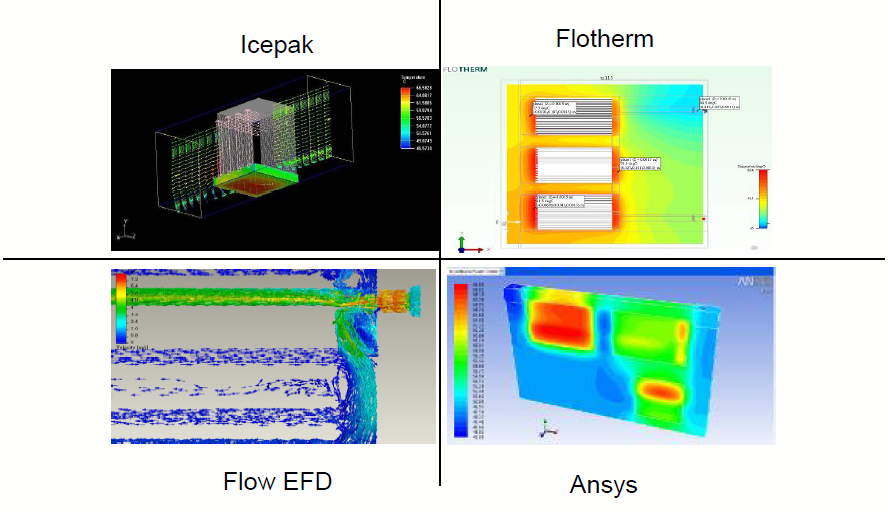

    Our seasoned professionals can model and critique the thermal implications of your design using Icepak, Flotherm, CFD, Solidworks, ProE, and AutoCAD.  We can manage your thermal needs from the conceptual design stage, through prototypes and into production, which enable us to be your “one-stop” shop for quality thermal solutions, delivered on time and at competitive prices.


    Pioneer Thermal Heat Sink R&D


    About Pioneer Thermal:

    As a heat sink manufacturer in China, Pioneer Thermal is certified with ISO9001, ISO14001 and TS16949, and has a dedicated quality assurance department with full CMM capabilities. We are focused on providing advanced technology, superior customer service and outstanding value to our industry partners.

    Pioneer Thermal has more than 18 years experience in heat sink design and manufacturing, our process includes CNC machining, cold forging heatsinks, cold plate heatsinks, die casting heatsinks, extrusion heatsinks, heatpipe assemblies, skived fin heatsinks, stacked fin heatsinks, folded fin heatsinks etc. If you need any heat sink service, please contact Pioneer Thermal.
