Heat Pipe Heat Sink with Stack Fin for High Power Cooling System

Use range：
Model: Heat Pipe Heat Sink with Stack fin

Process: Stamping + heat pipe soldering to heat sink + nickel plated

Place of Origin: Dongguan, China

Delivery Time: samples 2 weeks, production 3-4 weeks

Application: Telecommunication, Server, UPS, inverters, controllers, wind power converters,
and SVG

INQUIRY

CUSTOM HEATSINKS

Stacked Fin Heatsinks

Skived Fin Heatsinks

Heatpipe Assemblies

Extrusion Heatsinks

Die Casting Heatsinks

Cold Plate

Cold Forging Heatsinks

Vapor Chamber

Detailed information

Product Information:

Place of Origin:	Dongguan, China (Mainland)	OEM:	Yes
Process:	Stamping + Soldering + nickel plated	Temper:	T3-T8
Material:	Aluminum zipper fin+ heat pipe+Aluminum base	Shape:	Customized
Packing:	Paper carton with plywood pallet	Brand Name:	PT
Application:	Wind power converter, new energy, server	Certificate:	ISO 9001:2008,ISO 14001:2004
Tolerance:	0.01 mm	Quality control:	100% thermal test

Product Details

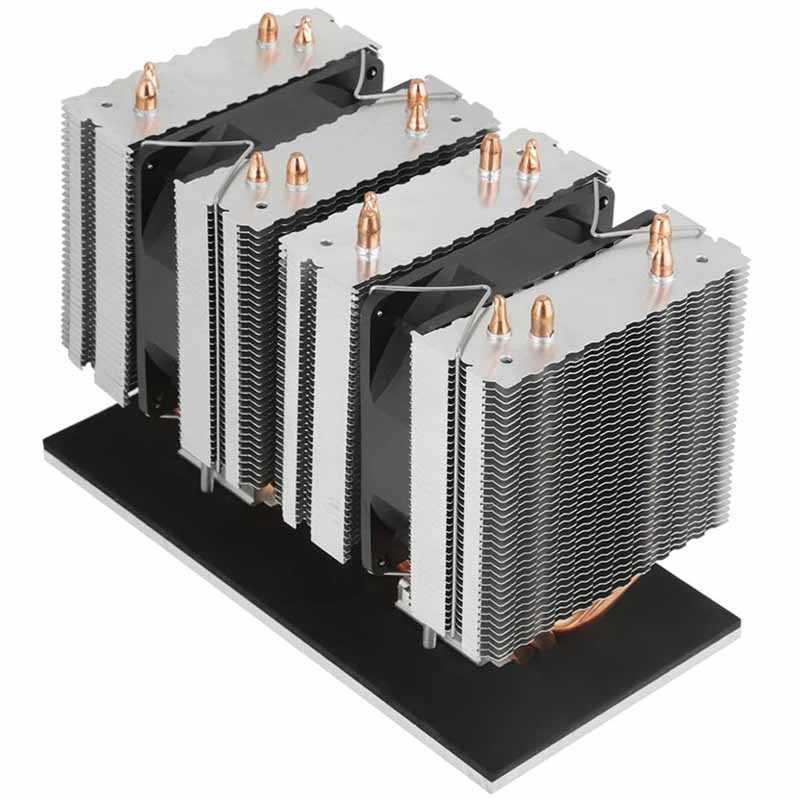

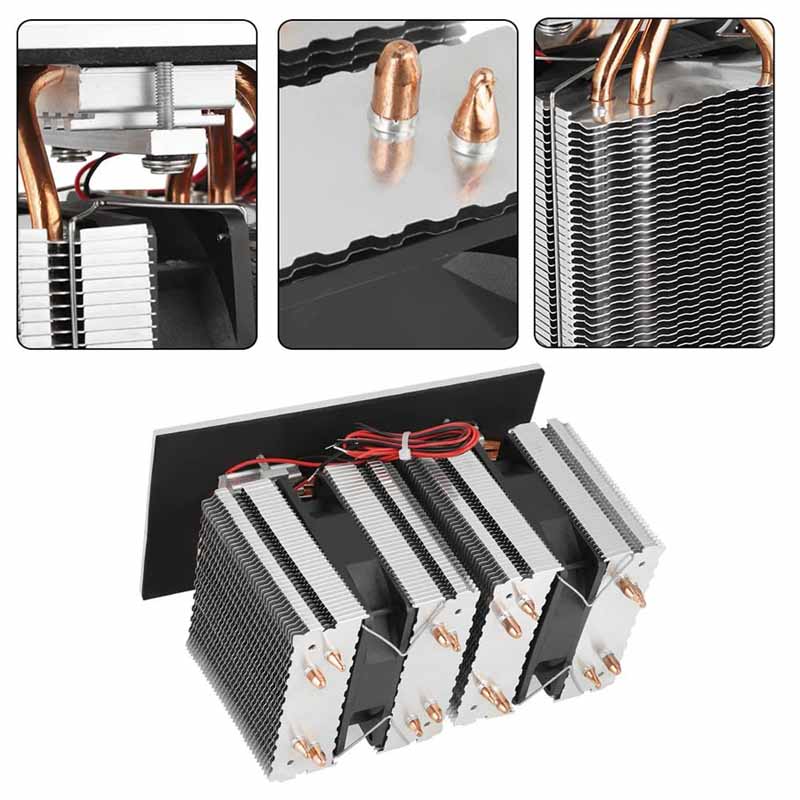

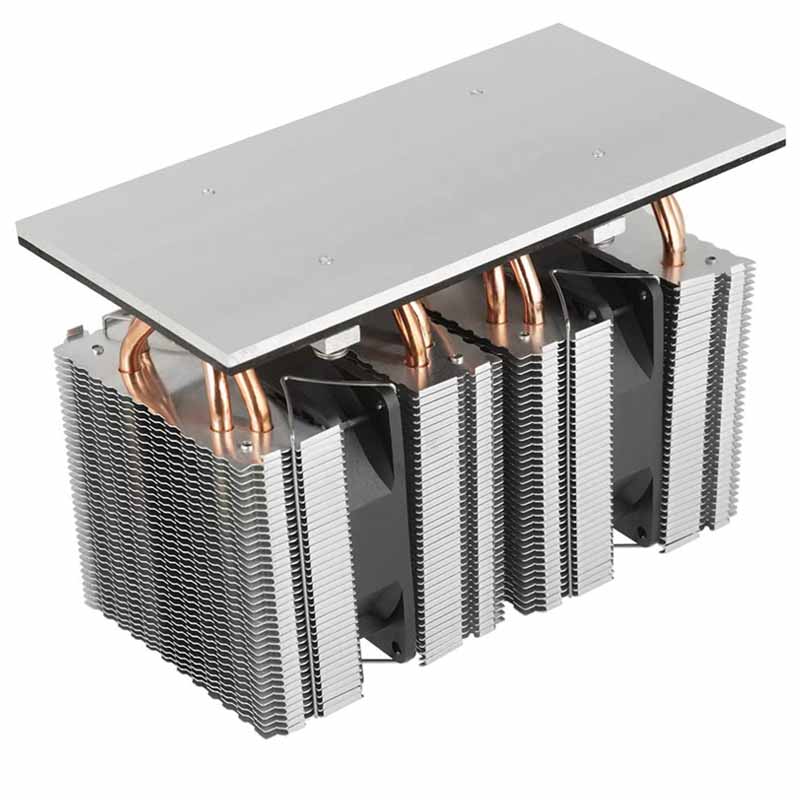

This heat pipe heat sink with stack fin is made of 8 heat pipes + 4 sets stack fin + AL base plate + fan, heat pipe is soldered to stack fin and AL base by reflow oven, surface treatment is nickel plating + oxidation.

Heat pipe heat sink has the following advantages:

1. Fast thermal response, its ability to transfer heat is more than 1000 times greater than that of copper tubes of the same size and weight;

2. Small size and light weight;

3. High heat dissipation efficiency, which can simplify the design of heat dissipation of electronic equipment, such as changing air cooling to self-cooling;

4. No external power supply is required, and no special maintenance is needed when working;

5. Has very good isothermal, after thermal equilibrium, the temperature gradient between the evaporation section and the cooling section is quite small, which can be approximated as 0;

6. The operation is safe and reliable and does not pollute the environment.
