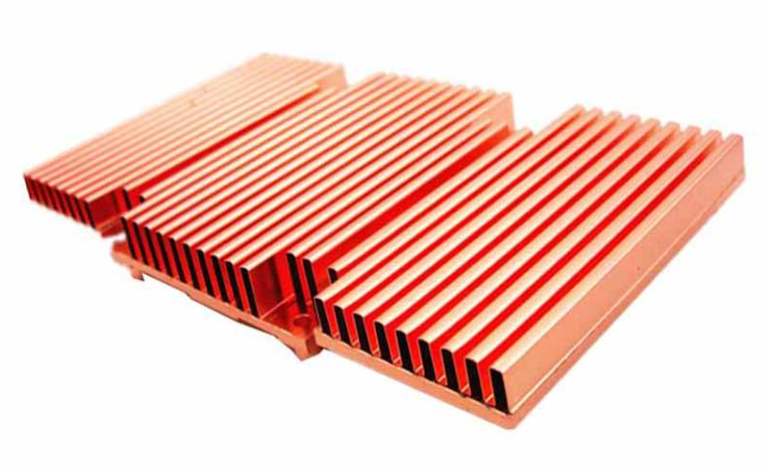

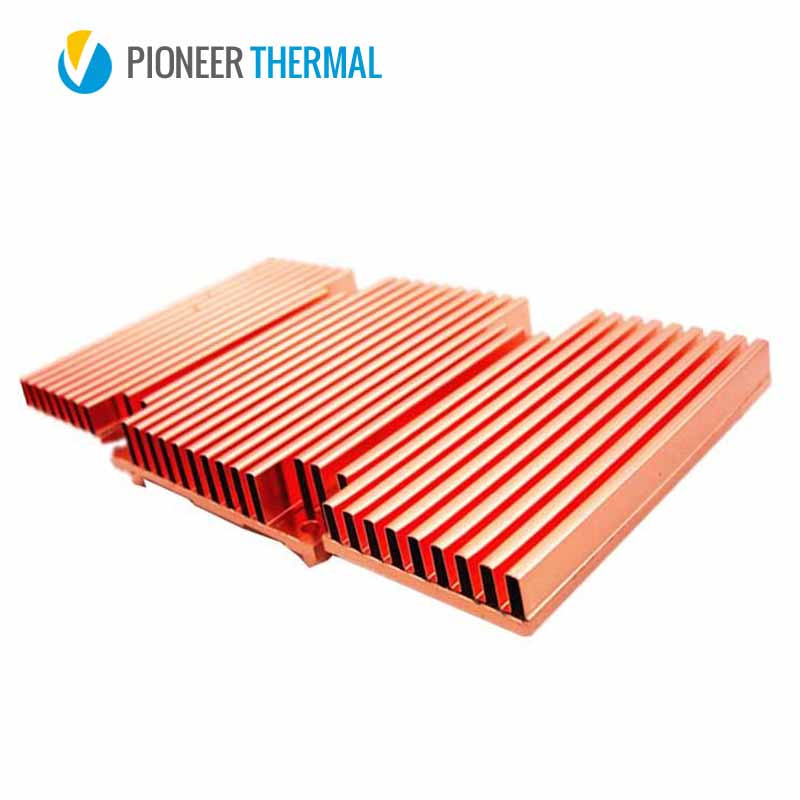

Copper Folded Fin Heat Sinks

Use range：
Model: Copper folded fin heat sinks
Material: CU1100
Finish: Passivation
Delivery time: sample 2 weeks, production 3-4 weeks
Pioneer Thermal can customize any size of the copper folded fin heat sink.

INQUIRY

CUSTOM HEATSINKS

Stacked Fin Heatsinks

Skived Fin Heatsinks

Heatpipe Assemblies

Extrusion Heatsinks

Die Casting Heatsinks

Cold Plate

Cold Forging Heatsinks

Vapor Chamber

Detailed information

Product Introduction

Folded fin heat sinks can have much thinner fins than extruded heat sinks or even bonded fin units. This makes them lightweight and provides good airflow at low cost. Aluminum and copper are the most common materials used for folded fins.

Copper Folded Fin Heatsink Process:

1. Make folded fin by stamping machine

2. CNC machine the copper baseplate

3. Bonded folded fin to baseplate

4. Passivation, inspection, pack and ship

Specifications of Copper Folded Fin Heat Sinks

Place of Origin:	Dongguan, Guangdong China (Mainland)
Process:	Folded fin
Temper:	T3-T8
Material:	Copper+ Folded Fin (C1100)
Shape:	Customize
Packing:	Carton + plywood pallet
Brand:	Pioneer Thermal
Application:	Server, CPU, projector, audio, inverter, converter etc.
Certificate:	ISO 9001:2015,ISO 14001:2015, TS16949
Tolerance:	0.01 mm
Finish:	Passivation
Extra process:	Soldering
Quality control:	100% quality checking
Size:	18011020mm, custom design
Sample Service:	Different sizes are available for prototypes test
