Product Introduction

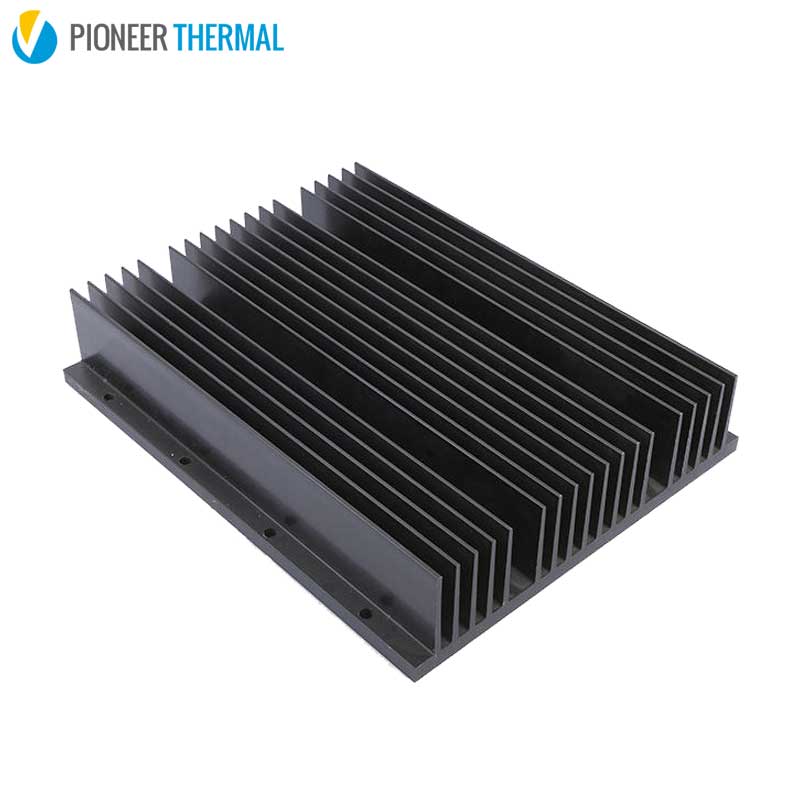

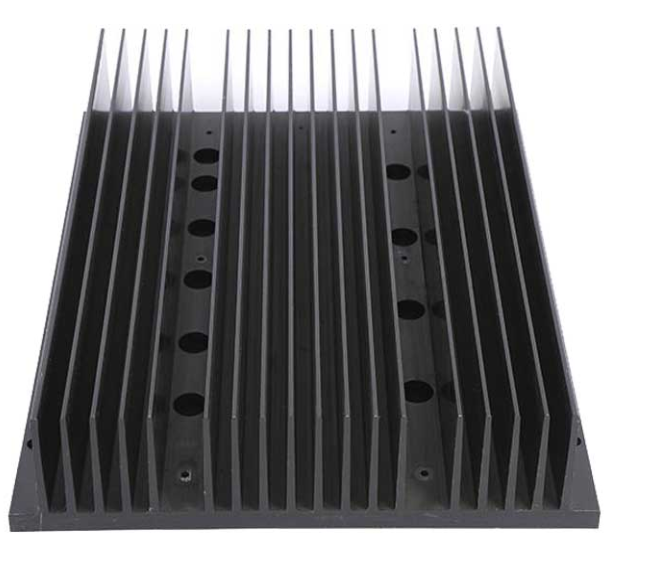

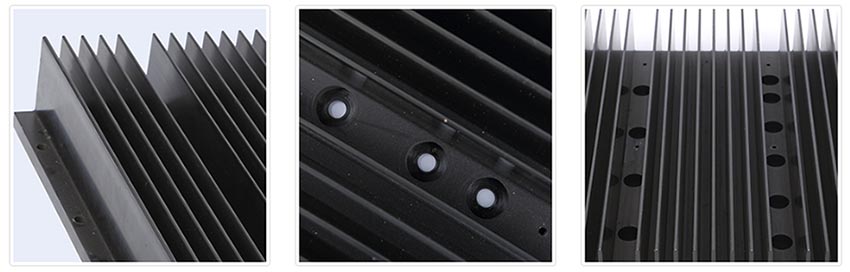

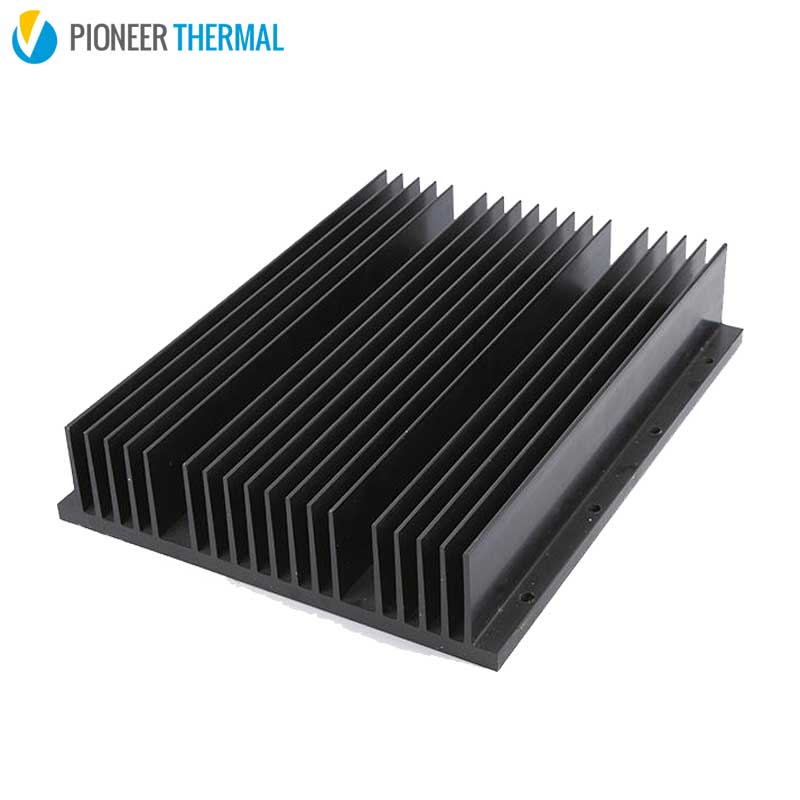

Extruded Aluminium Heatsink is the one of most popular and cost efficient heat sink for customers ,and it's features as following.
1. Heatsink made of high quality Aluminum, good thermal conductivity
2. Maximize surface area designed in contact with the cooling air
3. Oxidation surface treatment
4. Used for IC, Diode, Dynatron, Electronic, Led, Ram, Chip computer 's component heat dissipation, or anywhere you need a efficient heat sink
Extruded Heatsink Design Parameters:
Machine
tonnage
Diagonal Line
limit
Fin Height/Fin
Gap
600T
<120mm
24
880T
<130mm
24
1000T
<150mm
22
1500T
<180mm
22
1800T
<200mm
21
2500T
<230mm
21
2750T
<250mm
21
3000T
<320mm
20
3600T
<350mm
20
4000T
<400mm
20
6500T
<540mm
19
8000T
<700mm
16
Heat Sink Process:
Main Process
Extrusion
Bonded Fins
Cold Forging
Die Casting
Folded Fins
Heat Pipes
Skived Fins
Snapped Fins
FSW cold plate
Gun drill cold plate
Vacuum brazing cold plate
Vapor chamber
Finishing Processes
CNC machining
Drilling
Tapping
Stamping
Anodizing
Screen printing
Powder coating
Laser etching
Polishing
Finishing Value Added
Embedded fans
Thermal Greases
Screws
Springs
Clips
Embedded heat pipes
Phase change materials
Back plates
Gap filler pads
PEMs
Standoffs
Dielectric pads
Compounds
Pioneer Thermal R&D:
Our seasoned professionals can model and critique the thermal implications of your design using Icepak, Flotherm, CFD, Solidworks, ProE, and AutoCAD. We can manage your thermal needs from the conceptual design stage, through prototypes and into production, which enable us to be your “one-stop” shop for quality thermal solutions, delivered on time and at competitive prices
About Pioneer Thermal:
As a heat sink manufacturer in China,
Pioneer Thermal is certified with ISO9001, ISO14001 and TS16949, and has a
dedicated quality assurance department with full CMM capabilities. We are
focused on providing advanced technology, superior customer service and
outstanding value to our industry partners.
Our Customers
Most of Pioneer Thermal's heatsinks are customized and widely applied in IPC, server, telecom & communications, infrastructure &power, LED lighting, medical equipment, PV inverter, new energy and other application.
