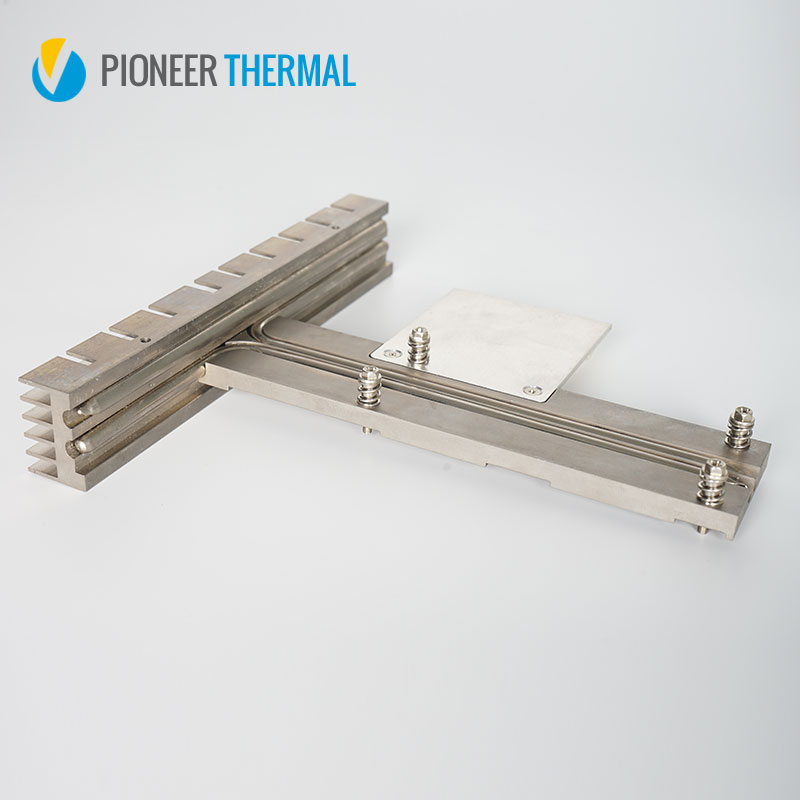

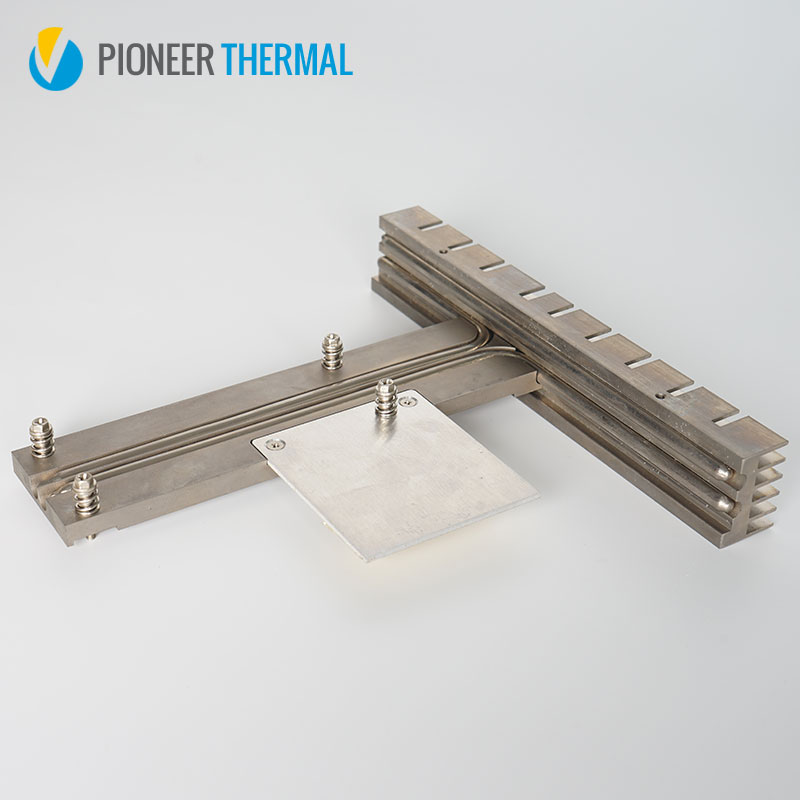

    Custom Aluminum Extrusion With Heat Pipes Soldering Heatsinks

    Use range：
    Aluminum extrusion heat sinks are an effective way to cool heat producing components in a cost-effective manner.Aluminum extrusion heat sinks can also be customized with embedded heat pipes, captive mounting hardware, and color anodizing. PT extrusion Heat Sinks Applications can be for LED, IGBT, and IC devices or a wide range of other packages for electronics.

    INQUIRY

    Product Introduction


    Aluminum extrusion heat sinks are an effective way to cool heat producing components in a cost-effective manner.Aluminum extrusion heat sinks can also be customized with embedded heat pipes, captive mounting hardware, and color anodizing. PT extrusion Heat Sinks Applications can be for LED, IGBT, and IC devices or a wide range of other packages for electronics.

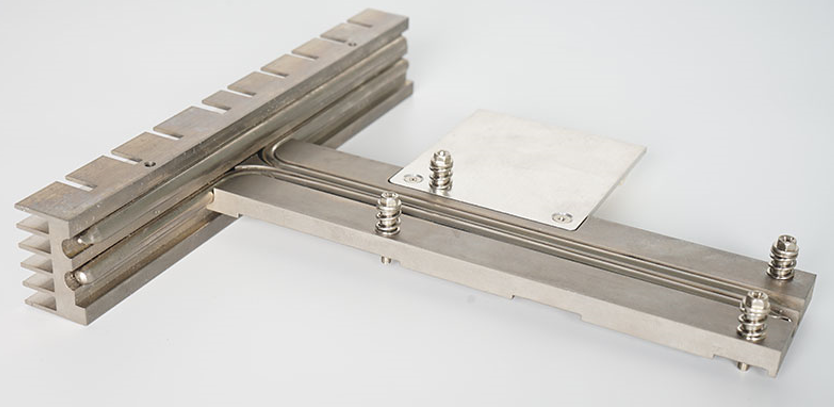

    Aluminum extrusion heat sinks

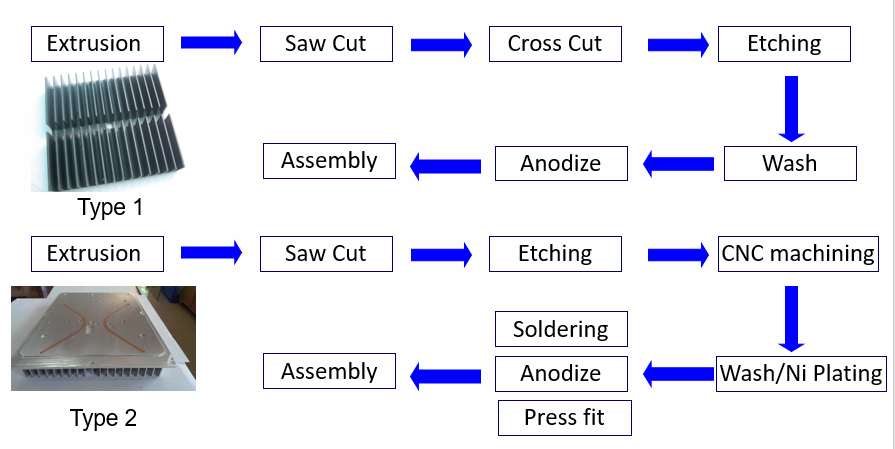

    Heat Sink Extrusion Process:

    Heat Sink Extrusion Process

    Design Parameter:

    Machine tonnage Diagonal Line limit Fin Height/Fin Gap
    600T <120mm 24
    880T <130mm 24
    1000T <150mm 22
    1500T <180mm 22
    1800T <200mm 21
    2500T <230mm 21
    2750T <250mm 21
    3000T <320mm 20
    3600T <350mm 20
    4000T <400mm 20
    6500T <540mm 19
    8000T <700mm 16

    Available heat sink process of Pioneer Thermal:

    Main Process Extrusion Bonded Fins Skived Fins Snapped Fins Folded Fins Heat Pipes
    Cold Forging Die Casting FSW cold plate Gun drill cold plate Vacuum brazing cold plate Vapor chamber
    Finishing Processes CNC machining Drilling Tapping Stamping Anodizing Screen printing
    Powder coating Laser etching Polishing Electrophoresis E-coating
    Finishing Value Added Embedded fans Thermal Greases Screws Springs Clips Embedded heat pipes
    Phase change materials Back plates Gap filler pads PEMs Standoffs Dielectric pads
    Compounds

    Pioneer Thermal Quality Assurance:

    Pioneer Thermal will do the quality control from incoming material to heat sink shipped, if customer find any defect parts when received the goods, we will send replacement or credit note.


    Quality Inspection Tool of Pioneer Thermal:

    Heat sink dimension
    CMM Projector
    Heat sink performance
    Salt Spray Tester Pressure Tester Clip Force Tester Drop Tester Helium Leakage Tester
    Heat sink reliability
    Wind Tunnel On Line Thermal Tester HP Qmax Tester HP Delta T Tester Thermal Shock High Temperature Aging Chamber

    Pioneer Thermal R&D:

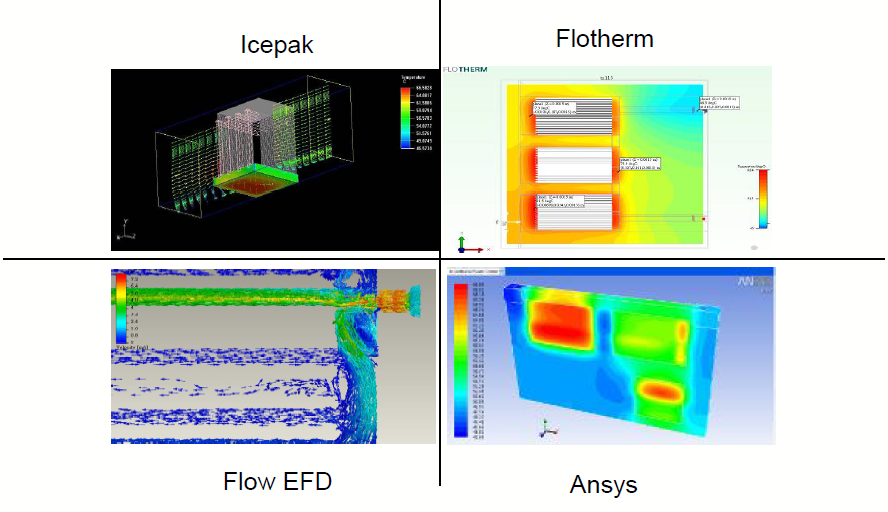

    Our seasoned professionals can model and critique the thermal implications of your design using Icepak, Flotherm, CFD, Solidworks, ProE, and AutoCAD.  We can manage your thermal needs from the conceptual design stage, through prototypes and into production, which enable us to be your “one-stop” shop for quality thermal solutions, delivered on time and at competitive prices.


    About Pioneer Thermal:

    As a heat sink manufacturer in China, Pioneer Thermal is certified with ISO9001, ISO14001 and TS16949, and has a dedicated quality assurance department with full CMM capabilities. We are focused on providing advanced technology, superior customer service and outstanding value to our industry partners.

    Pioneer Thermal has more than 18 years experience in heat sink design and manufacturing, our process includes CNC machining, cold forging heatsinks (also known as pin fin heat sink), cold plate heatsinks, die casting heatsinks, extrusion heatsinks, heatpipe assemblies, skived fin heatsinks, stacked fin heatsinks, folded fin heatsinks etc. If you need any heat sink service, please contact Pioneer Thermal.
