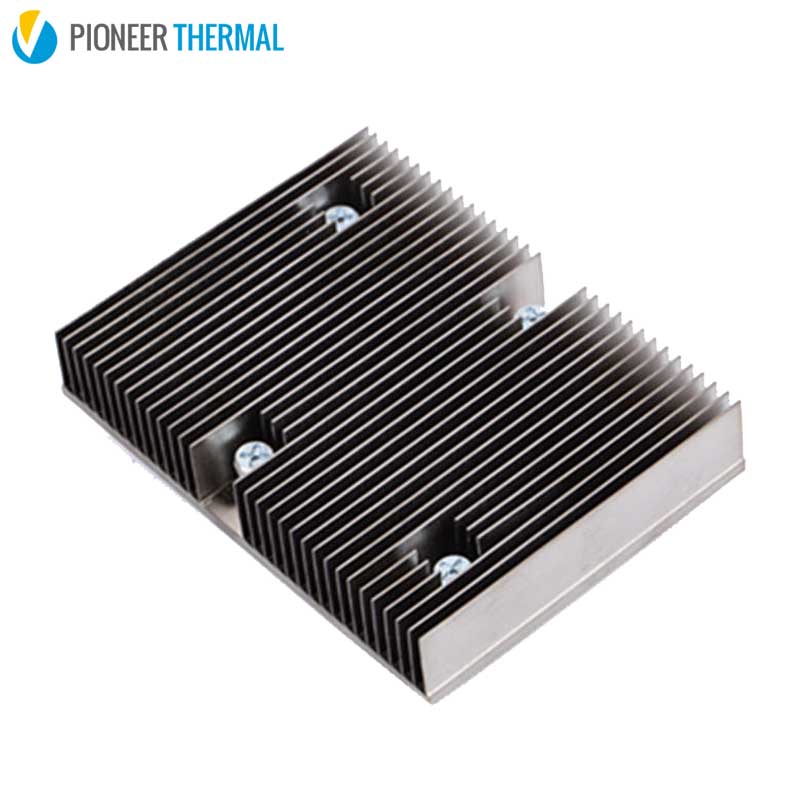

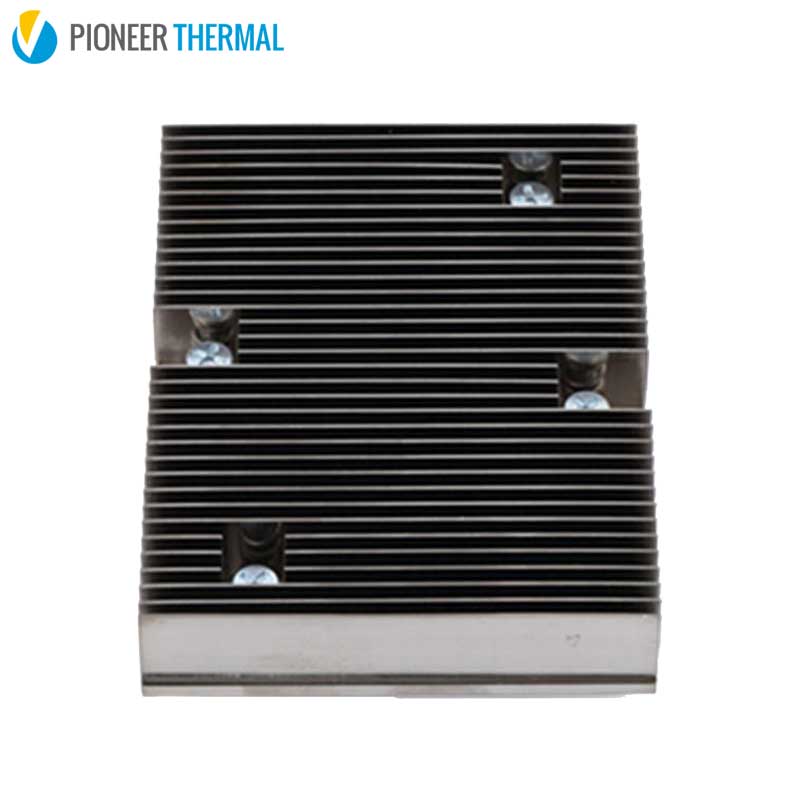

Skiving Heat Sink Aluminum

Use range：
The skived fin heat sink consists of a single piece of material, which reduces thermal resistance because there is no joint between the base and the fins. Skived fin heat sinks have greater heat transfer than extruded aluminum heat sinks. Compared to extruded aluminum, skived fin heat sink fabrication does not need tooling.

INQUIRY

CUSTOM HEATSINKS

Stacked Fin Heatsinks

Skived Fin Heatsinks

Heatpipe Assemblies

Extrusion Heatsinks

Die Casting Heatsinks

Cold Plate

Cold Forging Heatsinks

Vapor Chamber

Detailed information

Product Introduction

Skived fin heat sink fabrication does not need expensive mold, can saves on mold cost and design flexibility. This skiving heat sink is made of pure aluminum, thermal conductivity is good than the aluminum alloy, and the base and fins are one piece, so the heat dissipation performance is more stable. Pioneer Thermal Skiving Heat Sink

Technical Parameters

Place of Origin:	Dongguan, China (Mainland)	OEM:	Yes
Process:	Skived fin	Temper:	T3-T8
Material:	AL6063	Shape:	Square
Packing:	Paper carton with plywood pallet	Brand Name:	PIONEER THERMAL (PT)
Application:	High power devices	Certificate:	ISO 9001:2015,ISO 14001:2015, TS16949
Model Number:	PT021	Tolerance:	0.05 mm
Finish:	Andoized	Fin thickness:	0.25 --2 mm
Extra process:	CNC Machining	Size:	35018040 mm
Applied Field:	Telecommunication, UPS, inverters, controllers, wind power converters, and SVG
AL1060 / AL 6063/ CU1100 Process parameter: Base thickness: 1~30 mm Fin length: <550 mm Fin height: <120 mm Fin thickness: 0.25~2.0 mm Fin gap: 0.2~6.5 mm Product length: 3000 mm
