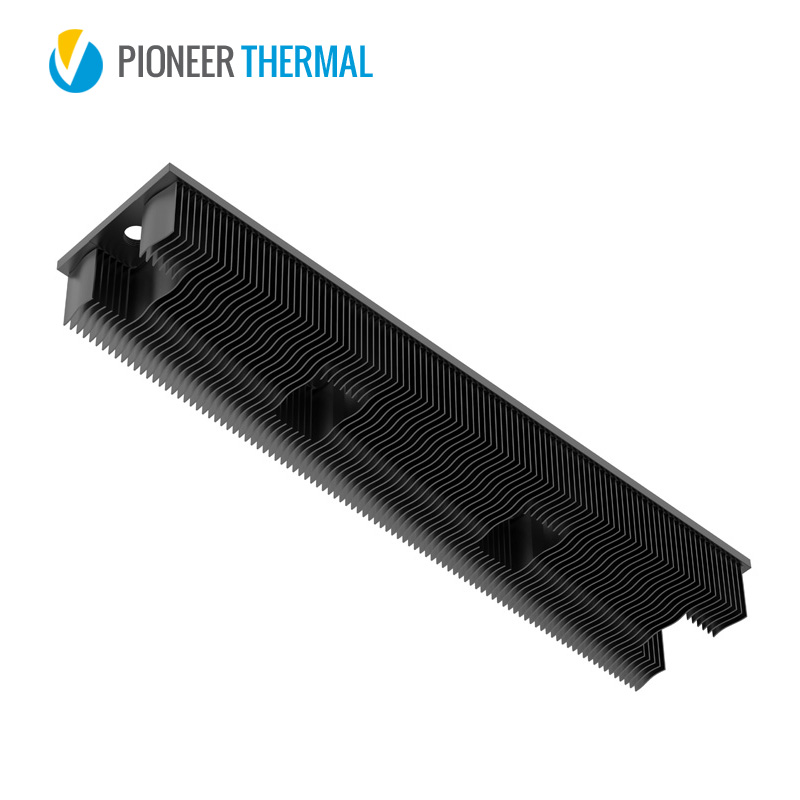

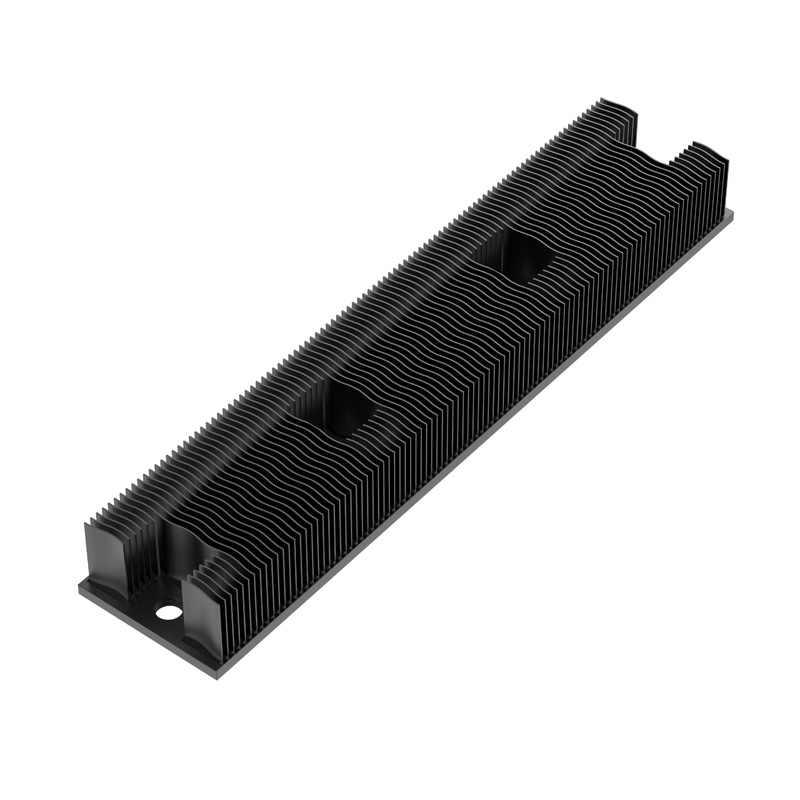

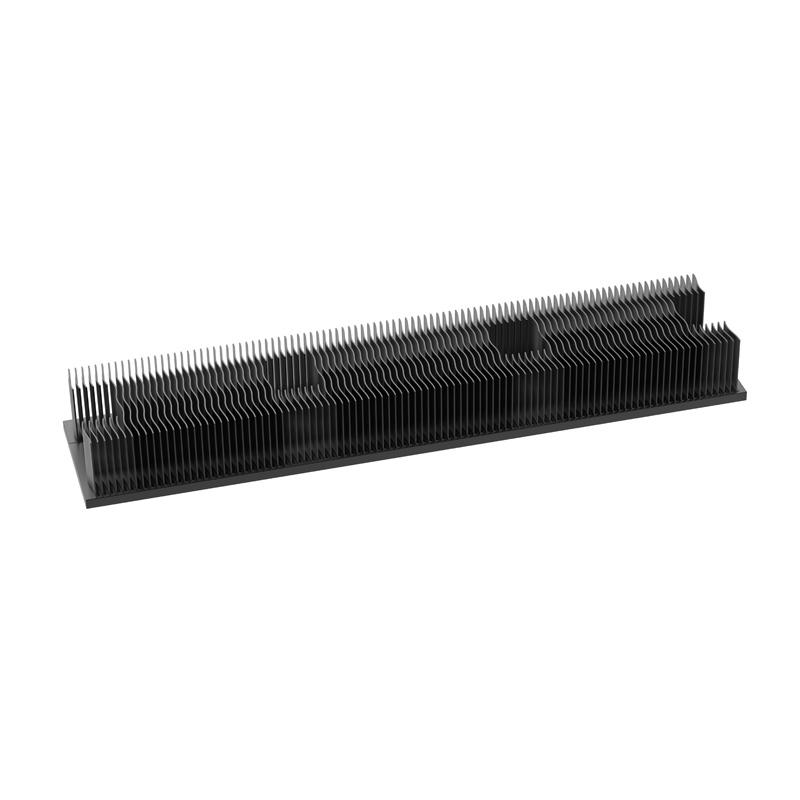

    Skived Fin Heatsink with waved fins

    Use range：
    Skived Fin Heatsink
    Materials: AL1060
    Base thickness: 1~30 mm Fin length: <550 mm Fin height: <120 mm
    Fin thickness: 0.1~2.0 mm Fin gap: 0.2~6.5 mm Product length: 3000 mm
    Recommended fin height: <50 mm
    Recommended fin thickness: 0.3-0.6 mm

    INQUIRY

    Product Introduction

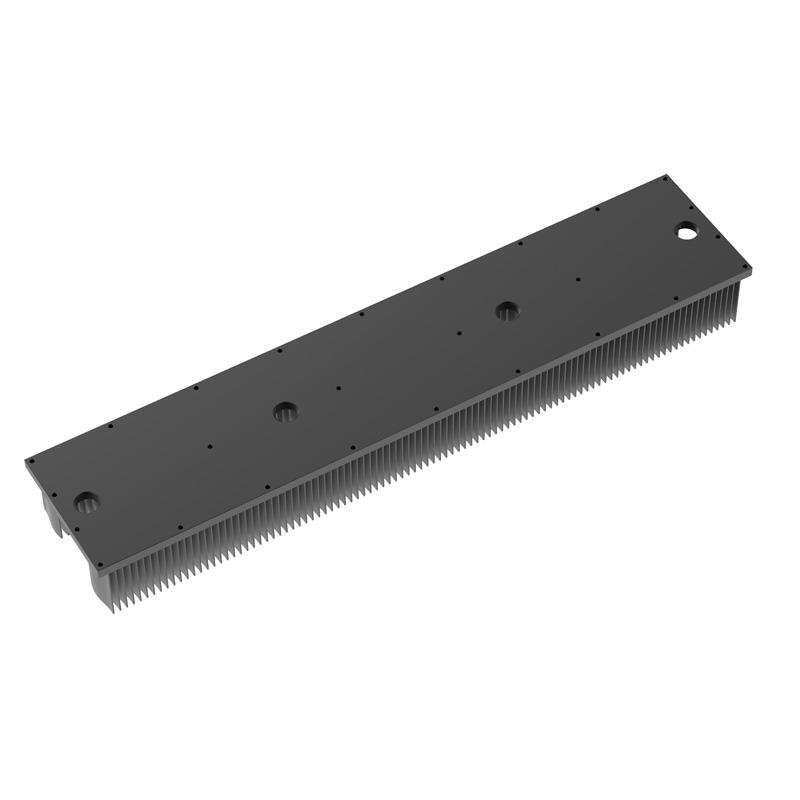

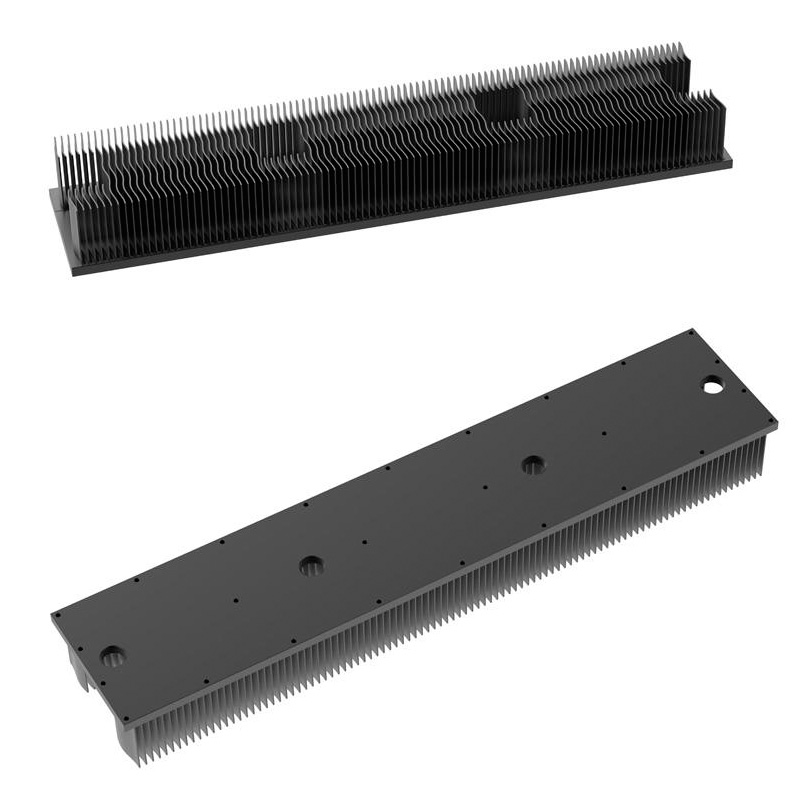

    Skived Aluminum Fin Heatsink

    Place of Origin:
    		 Dongguan, China (Mainland)
    		 OEM:
    		 Yes
    Process:
    		 Skiving+ CNC Machining
    		 Temper:
    		T3-T8
    Material:
    		 AL1060
    		 Shape:
    		 Customized
    Packing:
    		Paper carton with plywood pallet
    		 Brand Name:
    		Pioneer Thermal
    Application:
    		 Cooling high-power devices
    		 Certificate:
    		 ISO 9001:2008,ISO 14001:2004
    Model Number:
    		 PT0188
    		 Tolerance:
    		 0.05 mm
    Finish:
    		 Black anodized
    		 Fin thickness:
    		 0.25 --2 mm
    Design
    		 Custom design
    		 Size:
    		 200x56x30mm
    Applied Field:
    		 Telecommunication, UPS, inverters, controllers, wind power converters, and SVG

    Skived Aluminum Fin Heatsink Process parameter:
    Materials: AL1060
    Base thickness: 1~30 mm    Fin length: <550 mm Fin height: <120 mm
    Fin thickness: 0.1~2.0 mm    Fin gap: 0.2~6.5 mm    Product length: 3000 mm
    Recommended fin height: <50 mm
    Recommended fin thickness: 0.3-0.6 mm

    Skived Fin Heatsinks Advantages

    1. Integrated manufacturing, no soldering and mold opening;

    2. The thickness and spacing of fin can be made thinner and denser;

    3. The thermal conductivity is superior to the traditional extrusion heat sink and bonded fin heat sink.

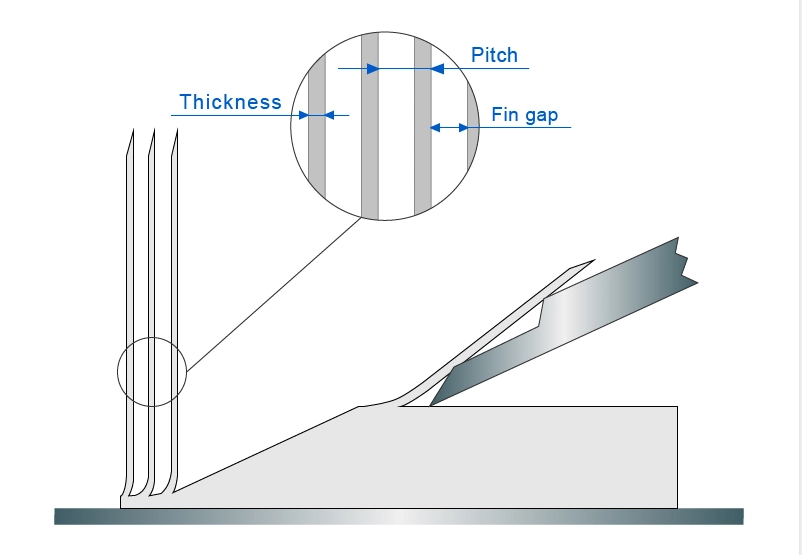

    heatsinks benifits
