Pure Copper Skived Fin Heatsink

Use range：
Copper skived fin heat sink has higher thermal conductivity than aluminum, this copper skived fin heat sink is made with ultra-thin fins. The customized skived fin heat sink of Pioneer Thermal (PT) are mainly suitable for industries with high thermal density and high power dissipation requirements.

INQUIRY

CUSTOM HEATSINKS

Stacked Fin Heatsinks

Skived Fin Heatsinks

Heatpipe Assemblies

Extrusion Heatsinks

Die Casting Heatsinks

Cold Plate

Cold Forging Heatsinks

Vapor Chamber

Detailed information

Product Introduction

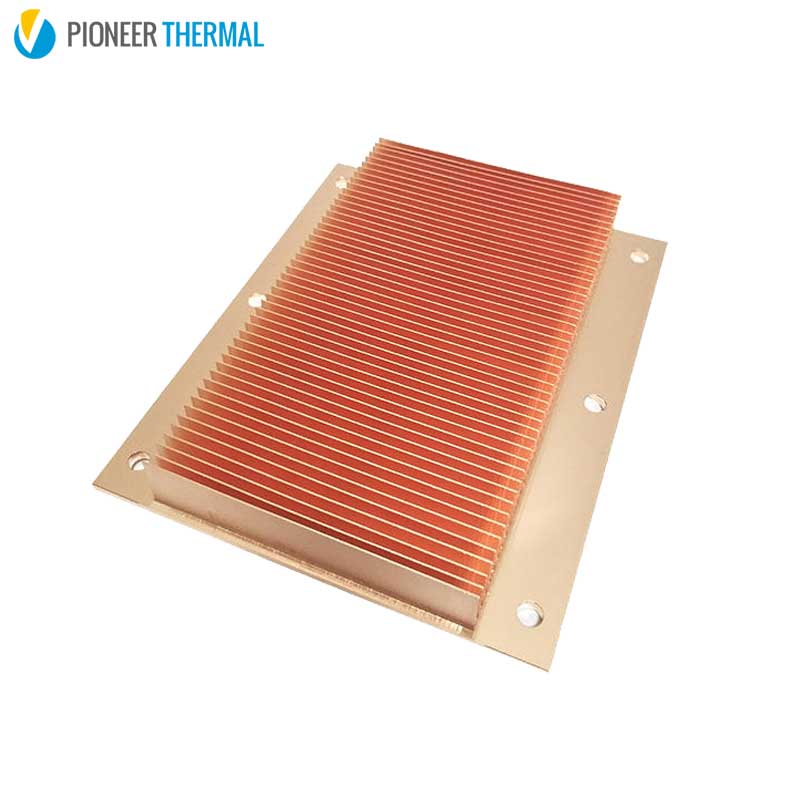

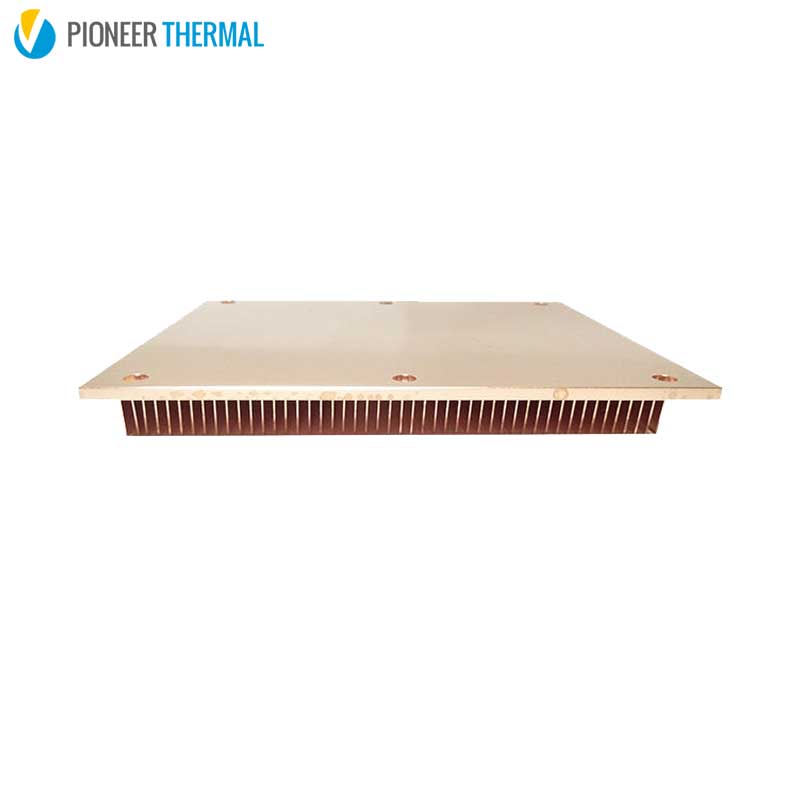

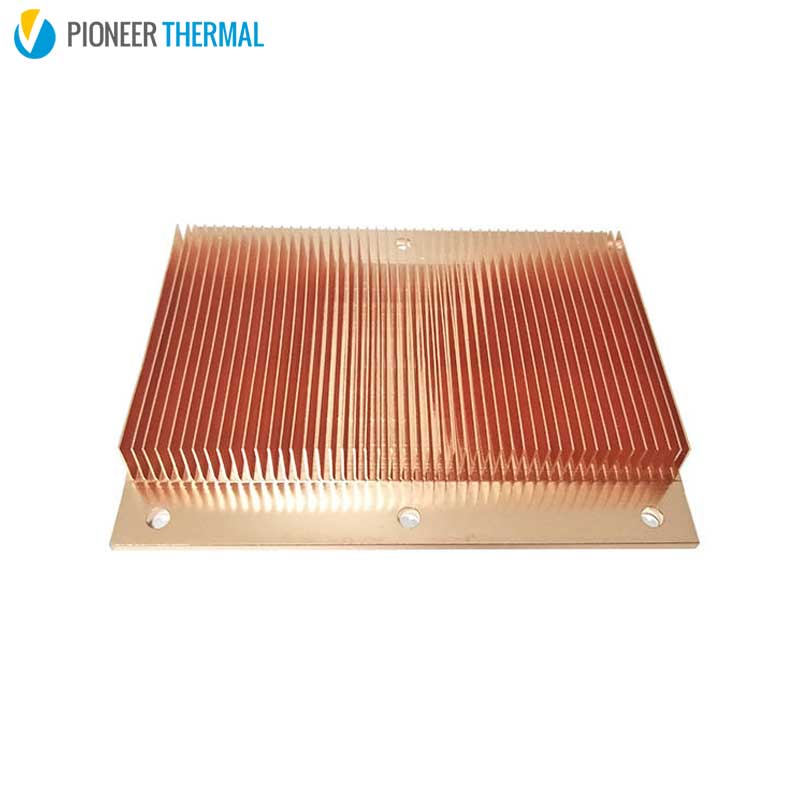

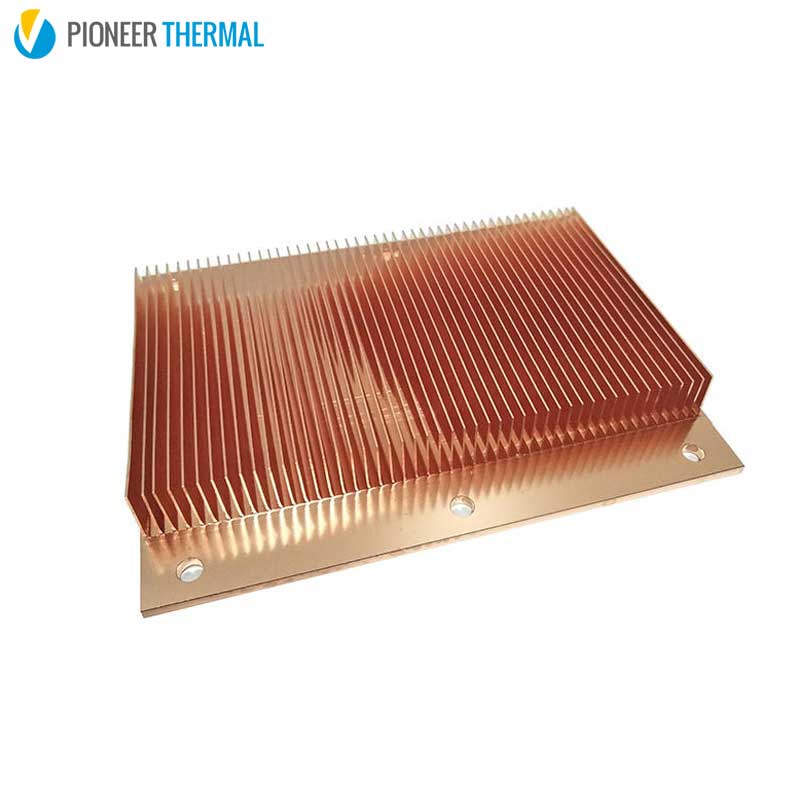

This copper skived fin heat sink is made of copper with ultra-thin fins. Copper has higher thermal conductivity than aluminum. The skive process is a good heat dissipation solution for the heat dissipation of high-power devices.

Size of this copper skived fin heat sink is 220*150*35 mm, here are some advantage of Pure Copper Skived Fin Heat sink:
1. Saves on Tooling Costs
2. Enables Solid Copper Solutions
3. Improved Thermal Performance

Pure Copper Skived Fin Heatsink

Manufacturing Process

Pure Copper Skived Fin Heatsink Technical Parameters

Place of Origin:	Dongguan, China (Mainland)	OEM:	Yes
Process:	Skived fin	Temper:	T3-T8
Material:	Copper	Shape:	Customized
Packing:	Paper carton with plywood pallet	Brand Name:	PIONEER THERMAL (PT)
Application:	Cooling high-power devices	Certificate:	ISO 9001:2008,ISO 14001:2004, TS16949
Model Number:	PT047	Tolerance:	0.05 mm
Finish:	Passivation	Fin thickness:	0.25 --2 mm
Extra process:	CNC Machining	Size:	22015035 mm
Applied Field:	Computer, power IC, power electric device, LED light devices, etc.
AL1060 / AL 6063/ CU1100 Process parameter: Base thickness: 1~30 mm Fin length: <550 mm Fin height: <120 mm Fin thickness: 0.25~2.0 mm Fin gap: 0.2~6.5 mm Product length: 3000 mm

PT heat sink can customize copper skived fin heat sink based on your thermal requirement and application. More important, we can design copper skived fin heat sink and run simulation to find the best and cost reasonable solution for your application.

Design Flowchart

Copper Skived Fin Heatsink Application

Copper skived fin heatsink is used in high-end chip heat dissipation, server and other fields, copper thermal conductivity is good, besides the skived fin technology can achieve the maximum heat dissipation area per unit volume, greatly improve the overall heat dissipation performance. We stand behind all of our them with a 100% product guarantee and promise to give you the best in customer care!

copper skived fin heatsink application
