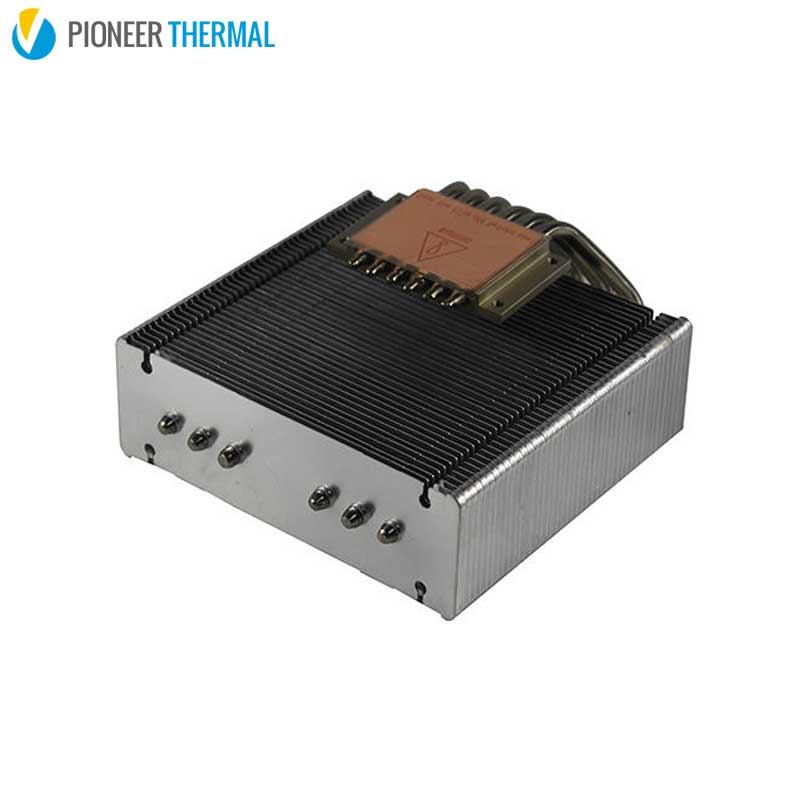

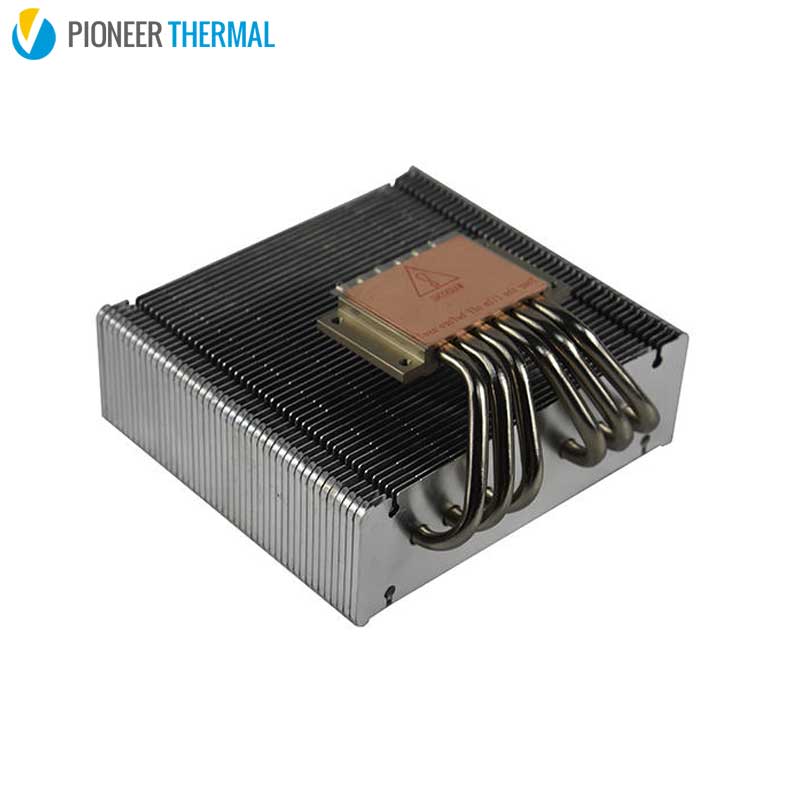

Nickel Coating Copper Pipe Heatsink

Use range:
Model: Copper Pipe Heatsink
Material: AL1100 + AL6063 + CU1020
Finish: nickel coating + anti-oxidation
Delivery time: sample 2 weeks, production 3-4 weeks.
Pioneer Thermal’s custom heat pipe heat sink options include active and passive cooling solutions.

INQUIRY

Product Introduction

Nickel Coating Copper Pipe Heatsink

Copper pipe heatsink has the following advantages:

1. Fast thermal response speed, Its heat transfer capacity is more than 1,000 times greater than that of copper tubes of the same size and weight;
2. Small size and light weight;
3. High heat dissipation efficiency, can simplify the heat dissipation design of electronic equipment, such as variable air cooling for self-cooling;
4. Do not need external power supply, work without special maintenance;
5. Has a good isothermal, thermal balance, the evaporation section and cooling section of the temperature gradient is quite small, can be approximately regarded as 0;
6. Safe and reliable operation, does not pollute the environment.

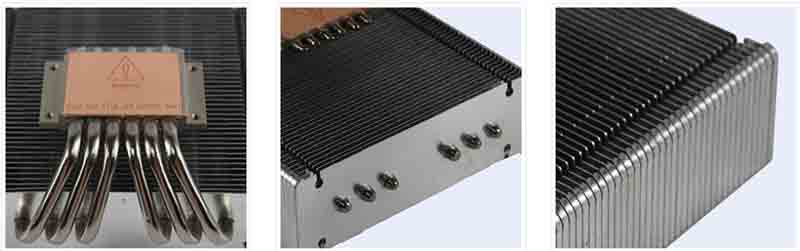

copper pipe heatsink laptop


>Technical Parameters:

Place of Origin: Dongguan, China (Mainland) OEM: Yes
Process: Soldering Temper: T3-T8
Material: Copper Pipe +Aluminum zipper fin Shape: Customize
Packing: Paper carton with wooden pallet Brand Name:
PIONEER THERMAL
Application: laptop cpu, led
Certificate: ISO 9001:2015,ISO 14001:2015, TS16949
Model Number: PT036 Tolerance:
0.01 mm
Finish: Chemical nickel plating Quality control: 100% on-line thermal test
Extra process: Stamping+CNC Machining Size: Custom size
Applied Field: Aerospace, cpu, motor,Solar energy, PV inverter, led

Manufacturing Process

1. Aluminum fin: made by stamping machine


2. Aluminum block: by CNC


3. Copper pipe: by heat pipe machine and bend


4. Aluminum fin and aluminum block nickel plated, copper pipe anti-oxidation


5. Assembly: aluminum fin, aluminum block and copper pipe soldering by reflow oven


6. 100% on-line thermal test


7. Pack and ship





Design Flowchart
