Product Introduction
Process:
Aluminum base: extrusion
Fin: Stamping
Assembly: insert fin to aluminum base and press fit, assemble copper pipe and aluminum base by epoxy
CNC machining the aluminum base to reach certain flatness
Inspection, pack and ship.

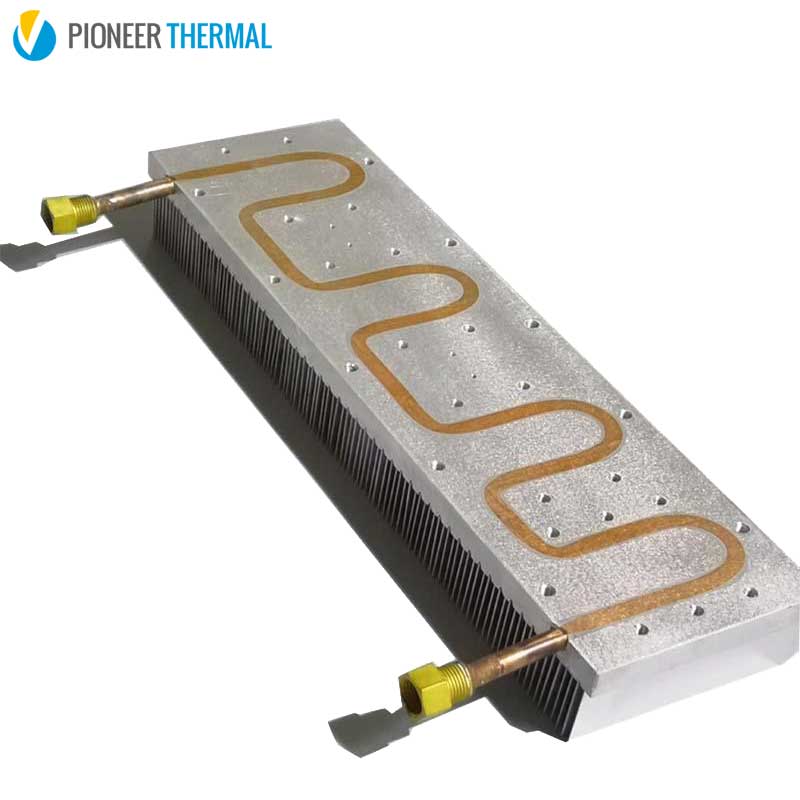

IGBT Heat Sink With Copper Pipe Technical Parameters
| Place of Origin: | Dongguan, China (Mainland) | OEM: | Yes |
| Process: | Extrusion + fin insert + press fit + epoxy | Temper: | T3-T8 |
| Material: | AL6063 + AL1100 + CU1020 | Shape: | Customize |
| Packing: | Carton + plywood pallet |
Brand Name: |
PIONEER THERMAL |
| Application: | IGBT inverter, new energy, automotive | Certificate: | ISO 9001:2015,ISO 14001:2015, TS16949 |
| Model Number: | PT041 |
Tolerance: |
0.01 mm |
| Finish: | Anodizing | Quality control: | 100% thermal test |
| Extra process: | CNC machining | Size: | 142(W)*71.5(H)*200(L)mm, or custom design |
| Max Aspect Ratio | More than 20 times aspect ratio heat sink can be extruded by 800 tons--5000 tons extruding machine by the most advanced technology | ||
| Max Width | Ultra wide extruded heat sink can be made by our unique friction welding technology | ||
| Sample Service | Samples with different sizes are available for prototypes test | ||
| Production Process | Aluminum base extrusion, fin stamping, press fit, copper tube epoxy to aluminum base, CNC Machining, Deburring, Cleaning, Inspecting, Packing | ||
Heat Sink with Copper Pipe Application
Heat sink with copper pipe applied to LED Lighting, Inverter, Welding Machine, Communication Device, Power Supply Equipment, Electronic Industry, Thermoelectric Coolers/Generator, IGBT/UPS Cooling Systems,etc.
