Product Introduction

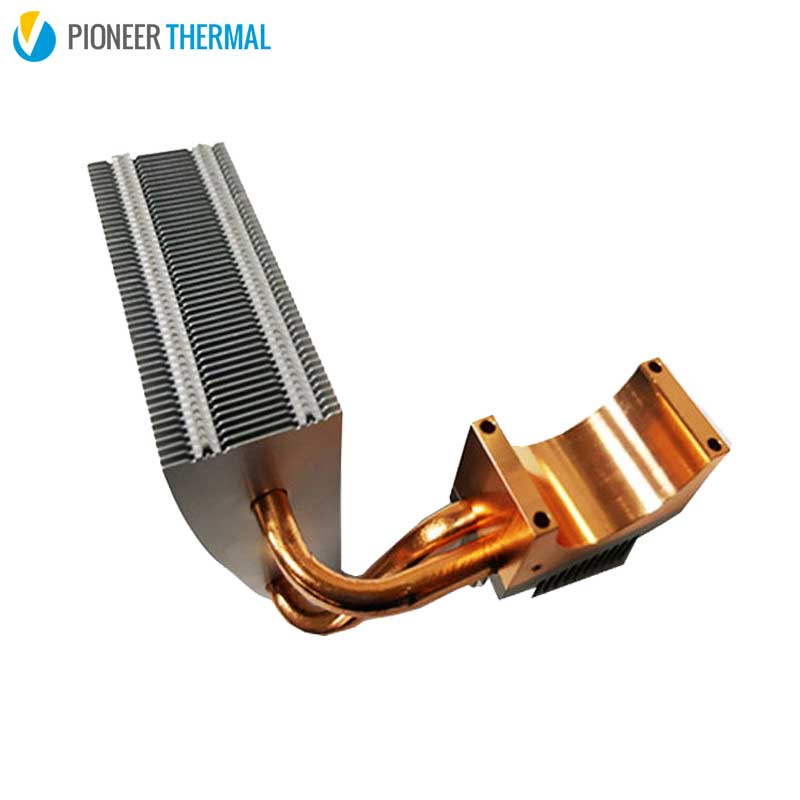

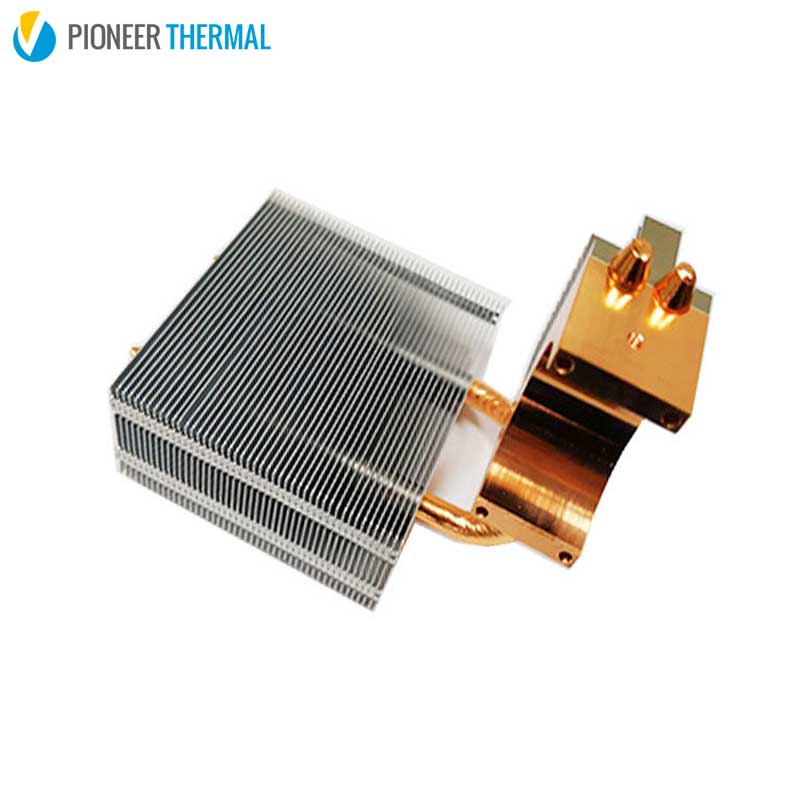

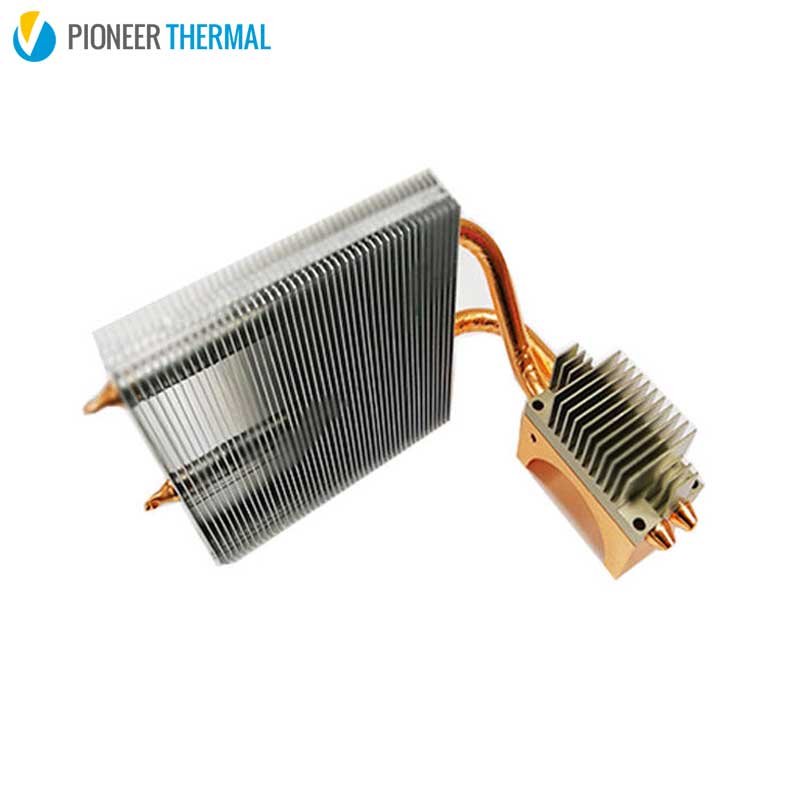

Manufacturing process for this Custom Heat Pipe Heat Sink:
1. Aluminum fin: made by stamping process
2. Aluminum base: made by extrusion process
3. U-shape copper block: made by CNC machining
4. Heat pipe: made by heat pipe machine, then bend to designed shape
5. Assembly: aluminum fin, aluminum base, copper block and heat pipe assembled by soldering process
6. 100% on-line thermal test
7. Inspection, pack and ship.
Technical Parameters
| Place of Origin: | Dongguan, China (Mainland) | OEM: | Yes |
| Process: | Soldering | Temper: | T3-T8 |
| Material: | Heat pipe+ Aluminum fin+ Aluminum extrusion + Copper base | Shape: | Customize |
| Packing: | Carton with plywood pallet |
Brand: |
PIONEER THERMAL |
| Application: | Projector, power supply, PV inverter | Certificate: | ISO 9001:2015,ISO 14001:2015, TS16949 |
| Model Number: | PT029 |
Tolerance: |
0.01 mm |
| Finish: | Passivation | Quality control: | 100% on-line thermal test |
| Extra process: | Stamping+CNC Machining+ Extrusion | Size: | Custom size |
About Pioneer Thermal:
As a heat sink manufacturer in China, Pioneer Thermal is certified
with ISO9001, ISO14001 and TS16949, and has more than 18 years experience
in CNC machining, cold forging heatsinks, cold plate heatsinks, die
casting heatsinks, extrusion heatsinks, heatpipe assemblies, skived fin
heatsinks, stacked fin heatsinks, folded fin heatsinks etc., Pioneer Thermal
has own R&D team who can design and run simulation for you if you
require design service, or assist your design team to improve the part feasibility
from the manufacture point of view (design refine/process optimize/cost
reasonable). If you need any heat sink service, please contact Pioneer Thermal.
